Product Description

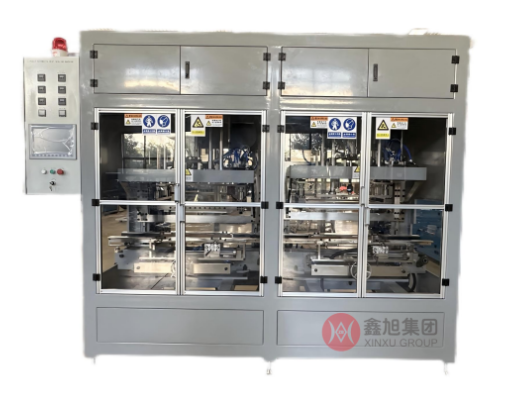

This equipment is specially designed for manufacturers with large output and various product models. It is mainly suitable for large cover and tank heat seal of automotive starter lead-acid battery, with the following advantages:

Convenient mold replacement: the replacement of hot sealing mold is simple and fast, effectively improve work efficiency.

Structure design is reasonable: the head is a CNC lifting structure.

High degree of automation: PLC control, through the touch screen display operation, can run automatically.

Easy operation and maintenance: easy to operate and maintain.

Main technical parameters

Heat sealed battery cover box material: PP ABS

Output: 180~240 PCS/hour (calculated by 12V/60Ah)

Power supply: AC380V60HZ

Air source: 6.8L/min,0.5-0.7Mpa

Power: 18KW

Machine size: 3100mmX1850mmX2310mm

Machine weight: 2900Kg
