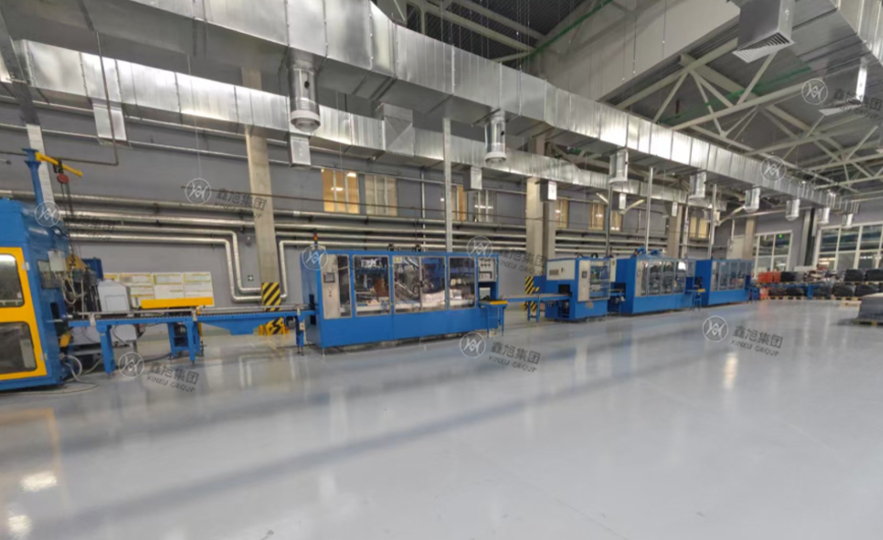

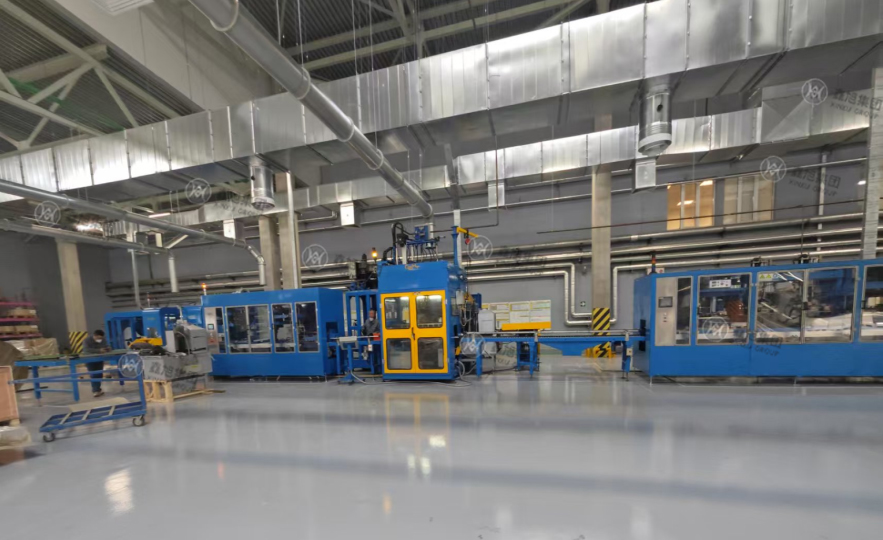

Automatic automotive battery casting and welding assembly line (12V) Usage:

Suitable for 12V lead-acid battery positive and negative plate assembly welding groove, cover, testing and other processes.

Equipment composition:

Automobile battery packaging machine, automobile battery casting and welding machine, automobile battery wall welding machine, battery heat sealing machine, airtight testing machine, control system and other parts.

Functional features:

1. Wrap coil PE partition or coil PE composite partition, which can automatically cut and wrap the partition, and realize automatic bag sealing

2, the equipment has an automatic cleaning pole ear device

3, polar group automatic feeding, dipping, hot catalysis, casting and welding, automatic unloading into the tank

4, can meet the 1x6, 2x3, 1x3, 1x4 battery structure type

5, modular design, easy to change

6, lead pot induction heating, low power consumption

7, casting and welding fixture tray rotation repeat positioning accuracy

8, respectively to the battery slot single cell inflation, can automatically detect the six layers of the battery leakage

9, the test pressure is continuously adjustable from 0~0.1MPa, each station using 6 pressure sensors can indicate the fault location (1.3.5.2.4.6 grid) indication

10, the use of laser marking, you can print Chinese and English text, numbers, time and date, graphics, etc., the printing surface on the battery surface, marking range 110mmX110mm

Technical indicators:

Production efficiency: 4.5 PCS /min
