It mainly includes a waste resin drying and curing system and a concentrated liquid drying and curing system, which can achieve volume reduction through heating and drying or drying and evaporation.

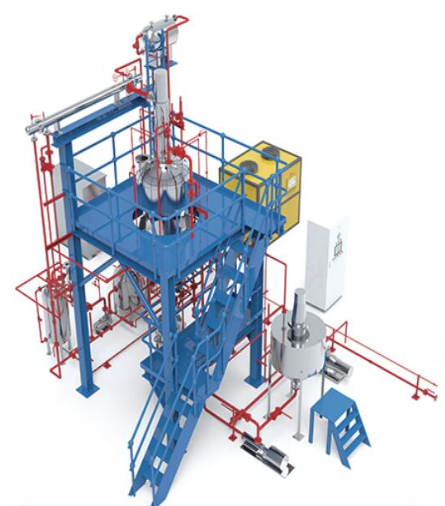

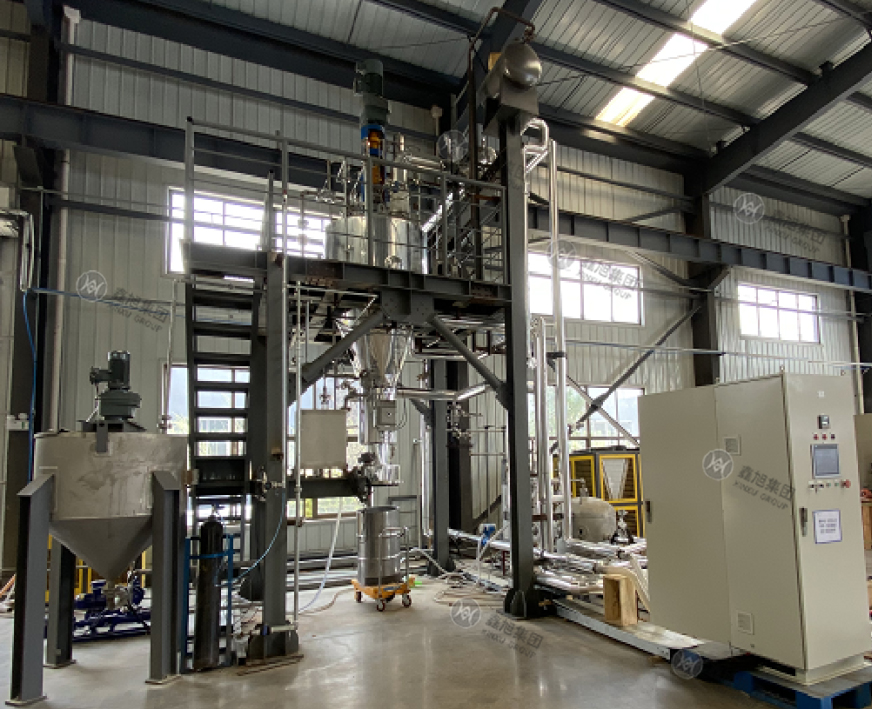

Waste resin drying device

The waste resin drying device is used to heat and dry the waste resin, activated carbon, zeolite and other granular waste generated during the operation of nuclear power plant, so as to achieve the purpose of volume reduction treatment.

Evaporation rate :20~30L/h;

Treatment media: waste resin, activated carbon, zeolite;

Single processing capacity :>400L;

Heating method: heat transfer oil jacket heating;

Heating temperature :200℃;

Heating power :80Kw;

Capacity reduction ratio :>1.9(nuclear grade waste resin);

Equipment composition: cone dryer, water ring vacuum system, heat conduction oil heating system, chiller, condensing water tank, condenser, dewatering pump, etc

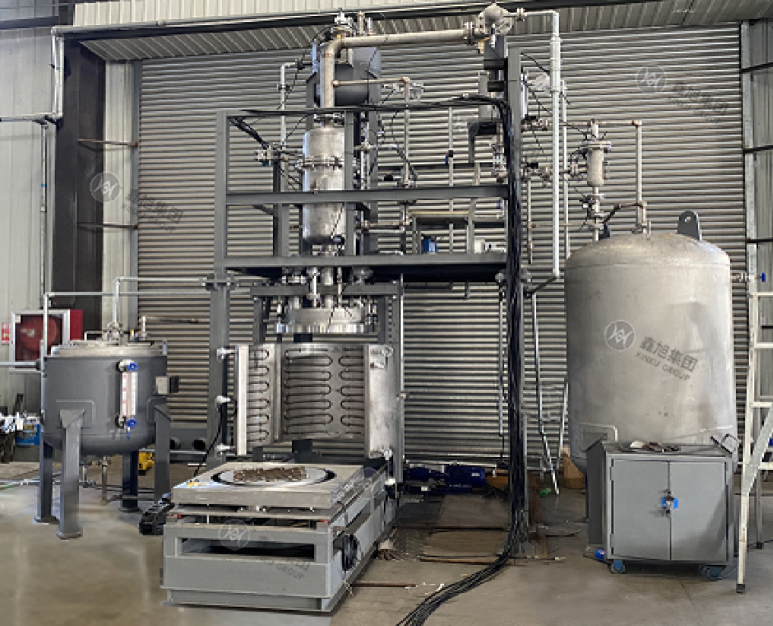

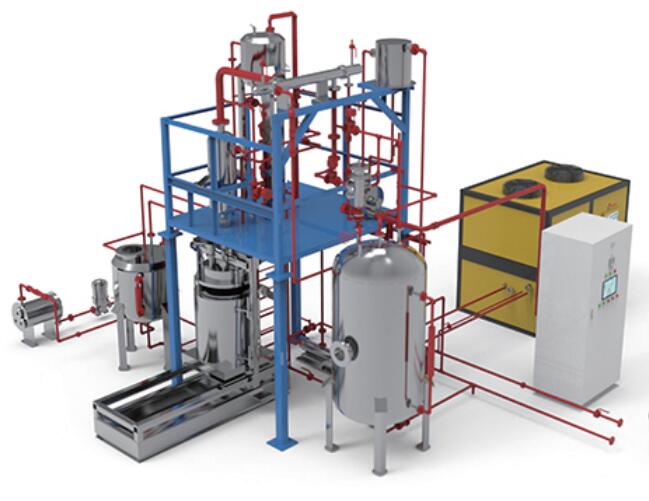

Concentrated liquid drying device

The concentrated liquid drying device is used for drying and evaporating the liquid waste such as residual liquid and mud generated during the operation of nuclear power plant to form salt block, so as to achieve the purpose of volume reduction treatment;

Evaporation rate :3~5L/h;

Processing medium: decatizing liquid, mud;

Heating method: electric heating;

Heating temperature :500℃;

Heating power :21KW;

Working pressure :-10KPa;

Volume reduction ratio :>6.6(chemical waste liquid);

Equipment composition: feed pump, concentrate buffer tank, drum drying station, condensate water, metering tank, condenser, condensing water tank, exhaust fan, chiller, etc.
